In modern industrial automation systems, the digital communication between intelligent instruments and actuators has become increasingly important. The HART (Highway Addressable Remote Transducer) protocol, as a widely used communication protocol in the field of industrial process control, plays a crucial role in field equipment such as control valves. This article will focus on how control valves communicate through the HART protocol and the application advantages in the industrial field.
First, Introduction to HART Protocol
The HART protocol is a hybrid communication protocol that combines traditional 4-20mA analog signals and digital communication functions. This protocol allows the simultaneous transmission of analog and digital signals on the same pair of wires, enabling field devices such as control valves not only to transmit process variables through 4-20mA current signals but also to realize equipment configuration, diagnosis, and multi-variable transmission through digital signals.
The HART protocol uses Frequency Shift Keying (FSK) technology to overlay digital signals on 4-20mA DC current without interfering with the transmission of analog signals. Its communication rate is 1200 bps, using Bell 202 standard frequency, with good compatibility
and stability.
Second, the Implementation of Control Valve and HART Communication

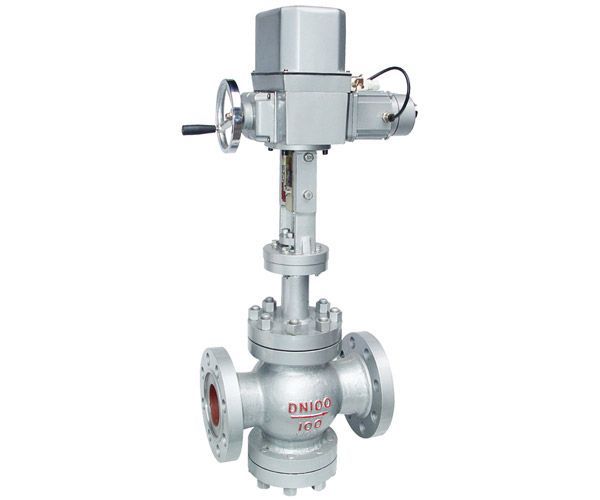

As an important actuator in the process control system, control valves are usually equipped with HART communication modules. Through this module, control valves can communicate bidirectionally with control systems (such as DCS, PLC) or handheld communicators (such as HART hand operators).
In practical applications, the HART communication of control valves mainly includes the following aspects:
1. Equipment Identification and Addressing
Each HART device has a unique device address, and the control system can access specific control valves through the address to realize remote configuration and monitoring.
2. Process Variable Transmission
Control valves can send parameters such as valve opening, stroke position, and process pressure to the control system through the HART protocol, realizing more precise process control.
3. Diagnostic and Maintenance
Information
HART supports equipment self-diagnosis functions, which can provide real-time feedback on valve status, such as valve leakage and actuator failure, helping to achieve predictive maintenance and improve system reliability.
4. Parameter Configuration
and Calibration
Operators can remotely modify the control parameters of control valves, such as deadband and response time, without disassembling the equipment through the HART protocol, which improves debugging efficiency.
Three, Advantages of HART Communication in Control Valves
1. Strong compatibility: The HART protocol is compatible with traditional 4-20mA systems, facilitating the upgrade and expansion of existing systems.
2. Convenient remote operation: Equipment configuration, calibration, and diagnosis can be completed without on-site operation, reducing maintenance costs.
3. Rich data: In addition to basic control signals, it can also transmit multiple process variables and diagnostic information.
4. Low cost and easy installation: Utilizing existing wiring, no additional communication cables need to be laid, saving costs.
Four, Summary
The application of HART protocol in control valves greatly enhances the intelligence level and system integration capability of control valves. With the development of Industry 4.0, although full digital communication schemes such as Foundation Fieldbus (FF) and Profibus
have emerged, HART still occupies an important position in industrial field due to its compatibility and practicality. In the future, with the development of new technologies such as Wireless HART, the communication capability and application flexibility of control valves will be further improved, providing stronger support for the efficient operation of industrial automation systems.
