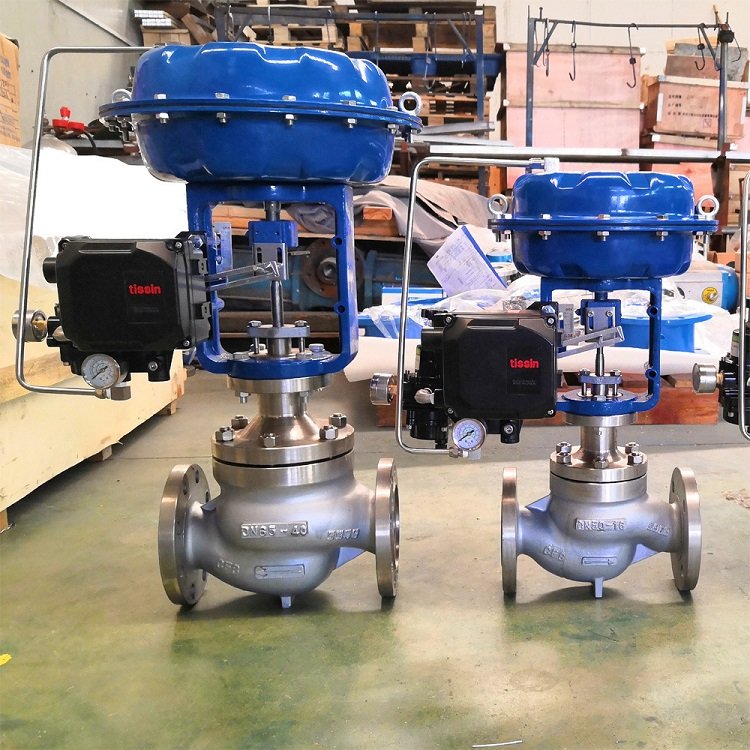

In industrial production, the separator regulating valve acts as a key component in the control system and is widely used in many fields such as oil, natural gas, chemicals, and electricity. Its main function is to automatically or manually adjust the pressure, liquid level, or flow inside the separator according to the system requirements, to ensure the stability and safety of equipment operation. Proper operation of the separator regulating valve can not only improve the efficiency of the system but also extend the service life of the equipment and reduce the occurrence of failures.
1. Understand the basic principles of the separator and regulating valve
Before operation, the operator should first understand the working principle of the separator and its relationship with the regulating valve. The separator is a device that separates gas-liquid or liquid-liquid mixtures. During operation, it is necessary to maintain certain pressure and level. The regulating valve controls the flow of the medium by receiving control system or manual instructions, thereby effectively controlling the pressure or level.
2. Preparation before operation
1. Check equipment status: Before operation, the regulating valve and its connecting pipes should be checked to confirm that there are no leaks, blockages, or mechanical damage.
2. Confirm system parameters: Including whether the current pressure, temperature, and level parameters are within the normal range.
3. Read the operation manual: The operation methods of regulating valves of different models may be different, and the instructions provided by the manufacturer should be read carefully.
4. Wear safety equipment: The operator must wear protective gloves, goggles, and other personal protective equipment.
3. Operation steps of the regulating valve
1. Pre-start check:
- Confirm that the regulating valve is in the closed state.
- Check whether the control system is working normally and whether the instrument display is accurate.
- Check whether the actuator (such as pneumatic or electric actuator) can respond to
signals normally.
2. Manual mode operation (suitable for initial debugging or emergency situations):
- Switch the regulating valve to manual mode.
- Slowly open the valve and observe the changes in system pressure or level.
- Adjust the opening step by step according to the actual operating conditions until it reaches the set value.
3. Automatic mode operation (normal operation mode):
- After switching to automatic mode, the regulating valve will automatically adjust the opening according to the parameters set by the control system.
- The operator needs to regularly check the system feedback values to ensure that the valve responds sensitively and adjusts accurately.
- If abnormal regulation is found, switch to manual mode immediately and carry out fault diagnosis.
4. Shutdown operation:
- Gradually close the regulating valve to avoid sudden changes in system pressure.
- Cut off the power source (such as gas source or power source).
- Record operation logs, including valve status, operating parameters, and other information.
4. Common problems and solutions
- Insensitivity to adjustment: It may be caused by a failure of the actuator or a problem with signal transmission, and it should be checked in time for the control circuit and actuator.
- Valve
leakage: It is mostly caused by the aging or damage of the sealing parts, and the corresponding parts should be replaced.
- Over-regulation or large fluctuations: It is necessary to readjust the control parameters, and it is necessary to calibrate by professionals if necessary.
5. Summary
The operation of the separator regulating valve seems simple, but it actually relates to the stable operation of the entire system. Only by operating according to the standard process on the basis of a full understanding of the equipment principle can we ensure that the regulating valve performs at its best. At the same time, the operator should have a certain ability to judge and deal with faults, to take prevention as the main priority and safety first, providing a strong guarantee for industrial production.
