The quick opening regulating valve is a key equipment widely used in industrial automation control systems. Its main function is to quickly open or close the medium flow in the pipeline when a signal is issued in the control system, thereby achieving the regulation of parameters such as pressure, flow rate, and temperature. Compared with ordinary regulating valves, the quick opening regulating valve has a fast response speed and sensitive action, especially suitable for occasions with high requirements for system response time, such as emergency shutdown and rapid regulation.
One, working principle of quick opening regulating valve

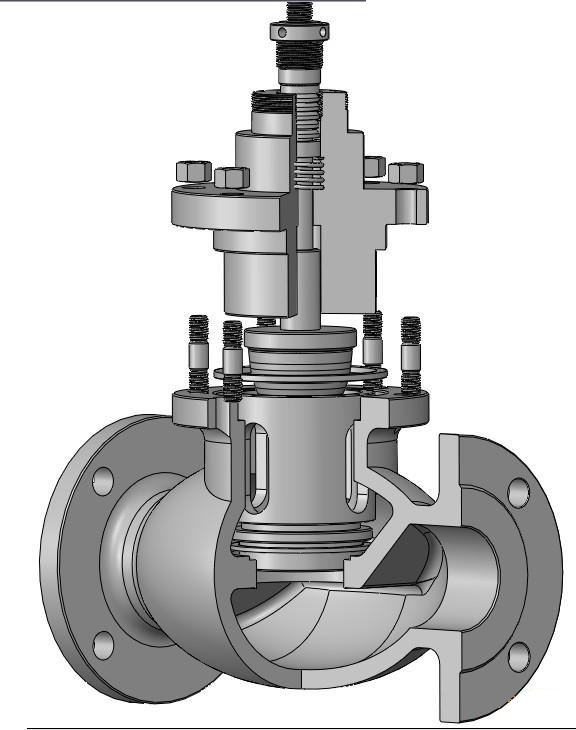

The core of the quick opening regulating valve lies in the design of its actuator and valve body structure. Common actuators include pneumatic, electric, and hydraulic types. Among them, pneumatic quick opening valves are the most widely used due to their fast response speed, simple structure, and high safety.
The 'quick opening' characteristic of the quick opening valve is mainly reflected in the initial stage of valve opening. Under the drive of the actuator, the valve core quickly leaves the valve seat, significantly increasing the flow area in a short time, thereby achieving rapid flow changes. This design usually adopts a non-linear flow characteristic, that is, the flow rate quickly rises in the initial opening section of the valve, and the change tends to be gentle in the subsequent travel.
Two, factors affecting response speed
The response speed of the quick opening regulating valve is affected by many factors, mainly including:
1. Actuator performance: Such as air actuator air pressure, exhaust speed, electric actuator motor power and control accuracy, etc.
2. Valve structure design: Including valve core shape, spring stiffness, and channel design, which directly affect the sensitivity and resistance of the valve opening.
3. Control system signal response time: The shorter the time from the PLC or DCS control system to the actuator's action, the faster the overall response.
4. Medium characteristics: Factors such as fluid viscosity, pressure, and temperature will also affect the actual response effect of the valve.
Three, application scenarios and advantages
Due to its rapid response characteristics, the quick opening regulating
valve is widely used
in the following fields:
- Petroleum and chemical industry: Used for emergency shutdown of oil or gas pipelines to prevent accidents.
- Power system: Used for rapid regulation
of steam flow in the bypass system of steam turbines.
- HVAC (Heating, Ventilation, and Air Conditioning): Used as a rapid opening and closing regulating
device to improve system energy efficiency.
- Water treatment system: Rapidly调节water flow in case of flow mutation, ensuring system stability.
In these applications, the quick opening regulating valve not only improves the control accuracy of the system but also enhances safety and emergency response capabilities.
Four, future development trends
With the continuous improvement
of industrial automation level, the quick opening regulating valve is developing towards intelligence, modularization, and energy conservation. The introduction of intelligent actuators enables the valve to have self-diagnosis, remote monitoring, and fault warning functions, greatly improving the reliability of equipment operation.
In summary, the quick opening regulating valve, as an indispensable part of the industrial control system, plays an increasingly important role in modern production with its efficient and rapid response capabilities. Through continuous optimization of design and control technology, the quick opening regulating valve will achieve higher performance and wider application in the future.
